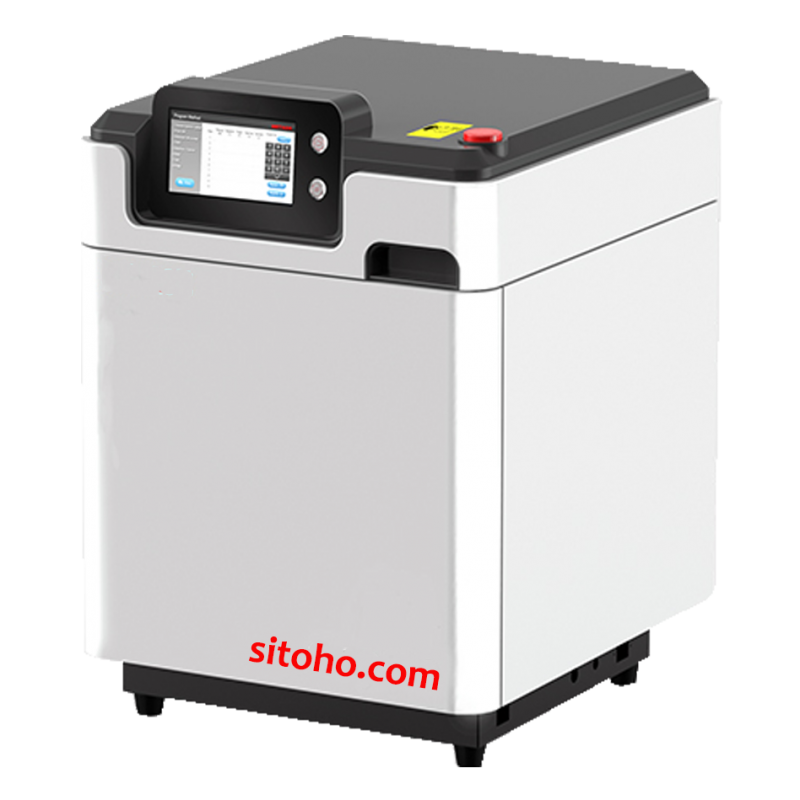

Microwave Digestion System
Specification :
| Model | MWD-610-T6 | MWD-610-T8 | MWD-610-T10 | MWD-610-T12 |
| Vessel Quantity | 6 | 8 | 10 | 12 |
| Temperature | Contactless IR Sensor Temperature Monitoring | |||
| Monitoring | Each Vessel Temperature Controlled | |||
| System | Temperature Controlling Range: 50~400℃ | |||
| Temperature Accuracy: ±0.1℃ | ||||
| Display Accuracy: ±0.1℃ | ||||
| Pressure | Contactless Sensor Pressure monitoring | |||
| Monitoring | Each Vessels Pressure Controlled | |||
| System | Pressure Controlling Range: 0~15MPa | |||
| Pressure Accuracy: ±0.01MPa | ||||
| Display Accuracy: ±0.01Mpa | ||||
| Vessel Volume | 100mL | |||
| Sample Vessel | Imported TFM | |||
| Material | ||||
| Protection Vessel | Peek+Glass Fiber | |||
| Material | ||||
| Display | 7 inch Touch Screen | |||
| Rotation | One Direction 360° continuous rotating | |||
| Microwave Tank | 316L stainless steel tank with corrosion-proof coating | |||
| Microwave Power | 0-1000W (Adjustable) | |||
| Microwave Leakage | <5mw/cm2 | |||
| Air Exhaust | High power corrosion-proof air blower | |||
| Power | AC 220V±10%, 10A, 50/60Hz | |||
| Dimension | 490×560×630mm(L×W×H) | |||
| Weight | 47 kg | |||
