Integrating Sound Level Meter Type 1 + Sound Calibator alat ukur kebisingan suara dengan penyimpangan 1 db dilengkapi dengan sound kalibrator untuk penyesuaian suara antara sound level meter dengan bunyi pada sound calibrator
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)

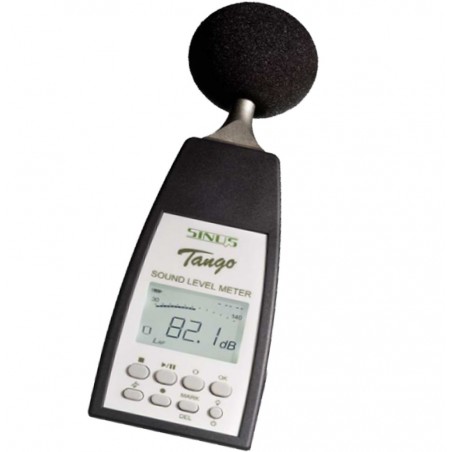

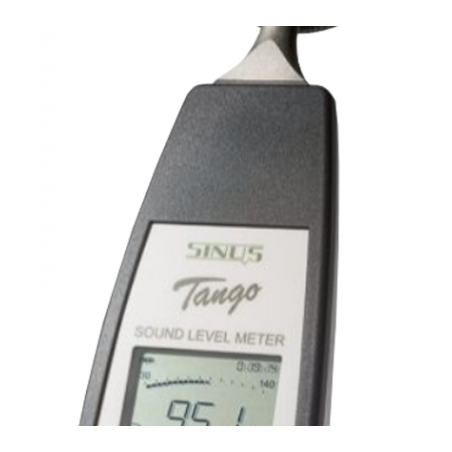

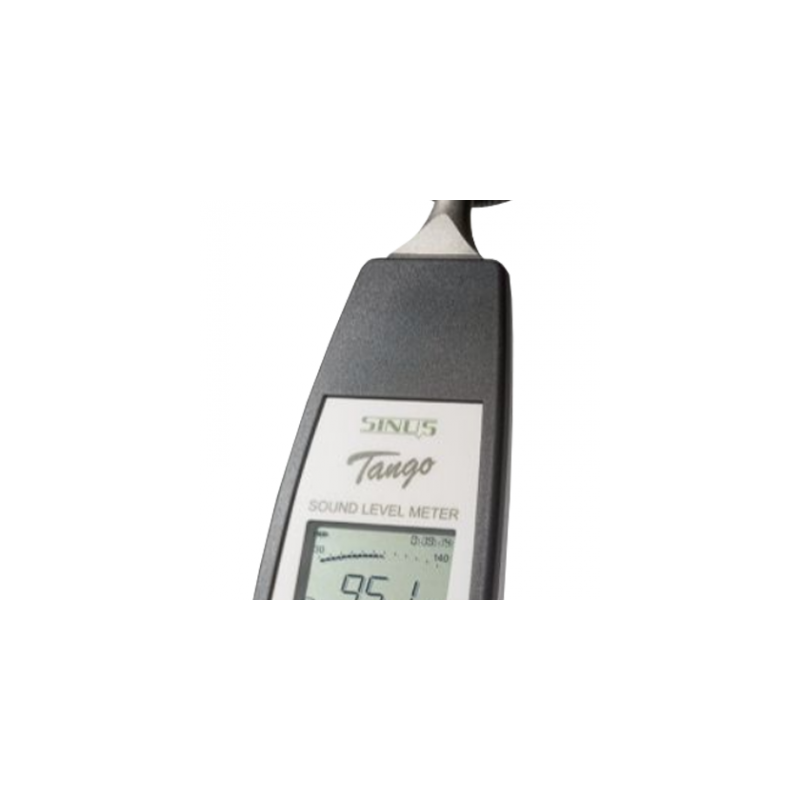

Integrating Sound Level Meter Type 1 + Sound Calibrator
Type : Tango TM (Germany)
Specification :
| ▪ | Accuracy | : | Class 1 according to IEC 60651 / 60804 / 61672 |
| ▪ | Type approval | : | PTB approval 21.21 / 12.04 Meas. values |
| - Sound pressure level LAF, LAS | |||
| - Maximum sound level LAFmax, LASmax | |||
| - Minimum sound level LAFmin, LASmain | |||
| - Equivalent sound pressure level LAeq | |||
| - Peak value LCpeak | |||
| - Sound dose LAE | |||
| - Taktmaximal level LAtm5 | |||
| - 3x LCpeak_exceedance (freely selectable) | |||
| ▪ | Freq. weightings | : | A + C peak |
| ▪ | Time weightings | : | Fast, Slow |
| ▪ | Ranges | : | 25 ... 140 dB (LAeq) |
| : | 60 ... 143 dB (LCpeak) | ||
| ▪ | Resolution | : | 0.1 dB |
| ▪ | Display | : | Illuminated LCD |
| ▪ | Microphone | : | 1/2" microphone MK255, 50 |
| ▪ | Calibration | : | Automatic with external 94 dB calibrator |
| ▪ | Interface | : | USB 2.0 |
| ▪ | Batteries | : | 2x AA (1.2 ... 1.5 V) Operating time > 120 h |
| ▪ | Dimensions | : | 190 x 70 x 32mm /250 g (including batteries) |
| ▪ | Scope of delivery | : | Sound level meter and Windscreen |
| : | 1.5m USB interface cable, | ||
| : | 1/2" Sound Calibrator | ||
| : | Manual and Certificate Calibration | ||
| : | Main power Supply | ||
| : | Utilities software | ||
| : | Carrying case |
