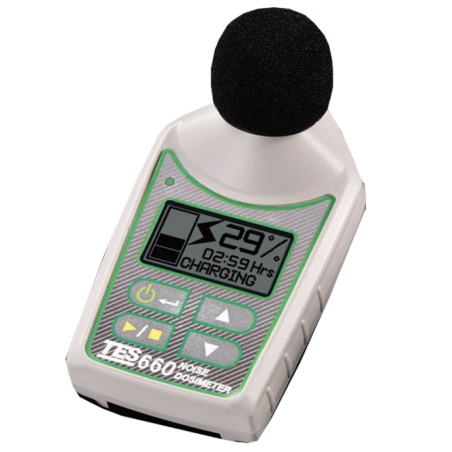

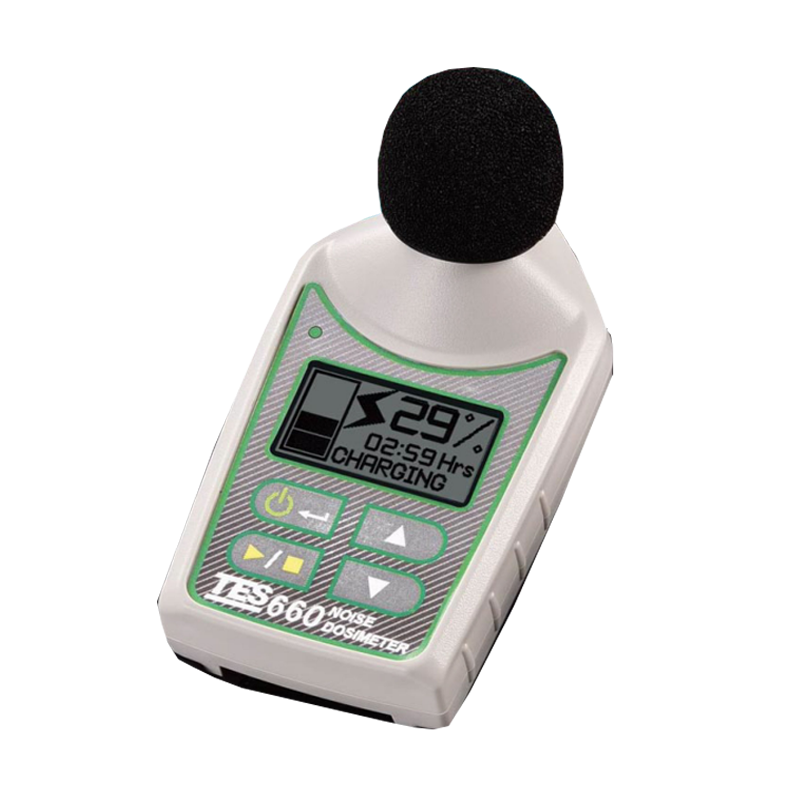

TES-660 Micro Noise Dosimeter | Badge Type

Rp0,00

Termasuk pajak

TES-660 Micro Nosie Dosimeter | Badge Type merupakan alat ukur kebisingan suara secara personal dengan jangkauan ukur mulai dari 70db - 143dB, Pembobotan waktu cepat, lambat dan and Impulse (Suara keras secara tiba-tiba seperti suara tembakan, ledakan, motor yang lewat secara tiba-tiba dengan kanalpot yang keras), Pembacaan dan penyimpanan suara dapat dipilih setiap 1 menit, 5 menit, 10 menit, 30 menit , 1 jam dan 2 jam sesuai kebutuhan. Jual Portable Noise Dosimeter TES-660 di Indonesia lengkap dengan software

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Keterangan
Detail produk

Micro Noise Dosimeter

Model : TES-660

Specification :

▪	Standard applied	:	ANSI S1.25: 1992 Personal Noise Dosimeter
		:	IEC 61252: 2002 Personal Sound Exposure Meters
		:	Intrinsic safety (660A): EN 60079-0: 2006,
			EN60079-11: 2007, EN60079-26: 2007
▪	Microphone	:	1/2-inch electret field replaceable threaded microphone
▪	Display	:	128x64 pixel graphics LCD
▪	Measurement Ranges	:	Dynamic Range: 70dB to 140dB
		:	Peak Range: 103dB to 143dB
▪	Frequency Weightings	:	A, C and Z, Type 2
▪	Time Weightings	:	Fast, Slow and Impulse
▪	Exchange Rate	:	3dB, 4dB, 5dB or 6dB
▪	Threshold Level	:	70 – 90dB in 1dB steps
▪	Criterion Level	:	70 – 90dB in 1dB steps
▪	Alarm warning indicators	:	LED showing level noise exceedances during run
▪	Clock	:	Real–time clock with calendar.
▪	Memory	:	Results from 30 measurements
▪	Measurement Control	:	Measurement Duration: May be set 10 to 55 min in 5min steps or
			1 to 24 Hrs in 1hr steps.
▪	Timers	:	Up to 99 timers (automatic start and stop) can be set
			(maximum up to one month ahead of measurement time).
		:	Timer Controlled Started / Stop: Up to 16 timers can be set up
			from the PC software or meter keypad.
▪	Logging storage (results)	:	At least 100 hours at 4 profiles every minute with unit showing
			remaining memory recording time in hours when switched on.
▪	Stored profile values	:	Lavg, LZpk, Leq, LCpk
▪	Storage interval	:	1, 5, 10, 30minutes and 1or 2 hours can be set
▪	Setup	:	Ten built–in (predefined) default setups are included.
		:	Nine additional user–defined setups can be stored.
▪	Battery	:	Li Polymer (3.7V/470mAh)
▪	Charging unit / PC interface	:	Complete meter fits neatly into the charging unit (DS-01).
		:	Quick battery recharge in less than 90 mins from completely empty.
		:	Communications via the charging unit (DS-01) and USB to PC.
▪	Operating Temperature	:	0 to 50ºC
▪	Size	:	84(L)×49(W)×55(H)mm / 3.3(L)×1.9(W)×2.2(H)inch (with windscreen)
▪	Weight	:	Approx. 77g (2.7oz), less mounting device
▪	Accessories	:	Instruction manual,
		:	Carrying case,
		:	Charging unit (DS-01),
		:	AC adapter for DS-01 (up to 4 linked DS-01),
		:	CD software
		:	USB cable.
